Create and link a traffic alert rule

The Monitoring page in the Redox dashboard allows you to view and manage your traffic alert rules. Learn about monitoring data exchange health.

This article contains instructions for how to create and manage traffic alert rules and associated links.

Review types of alert rules and the purpose of links before you start creating.

There are different traffic alert rule types that watch for different scenarios in your data exchange. You can create one or more types based on your unique needs.

You must link an alert rule to a subscription to actively watch for the rule’s defined conditions. If the conditions are met, you receive a notification. That way, you can preemptively monitor the health of your subscriptions.

An alert rule can be linked to multiple subscriptions. You can pause or delete a link at any time.

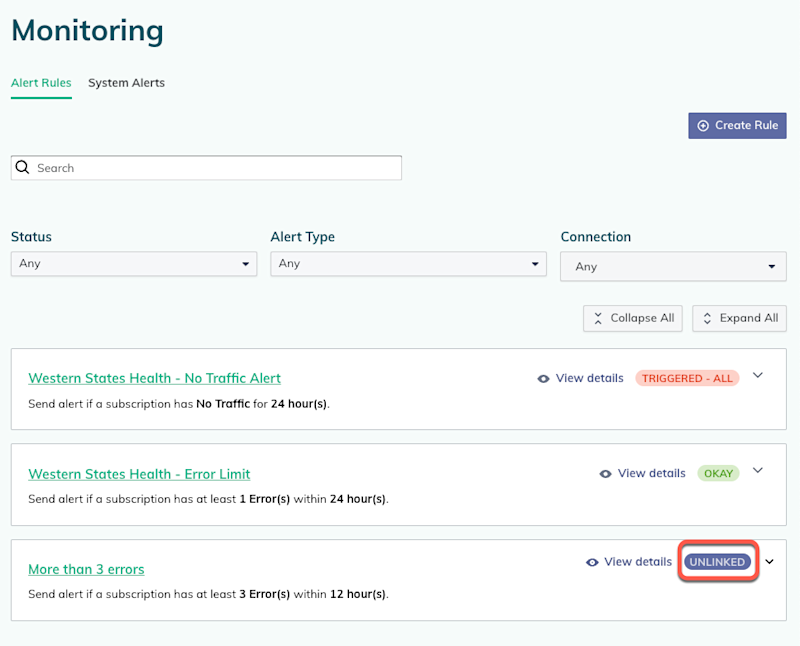

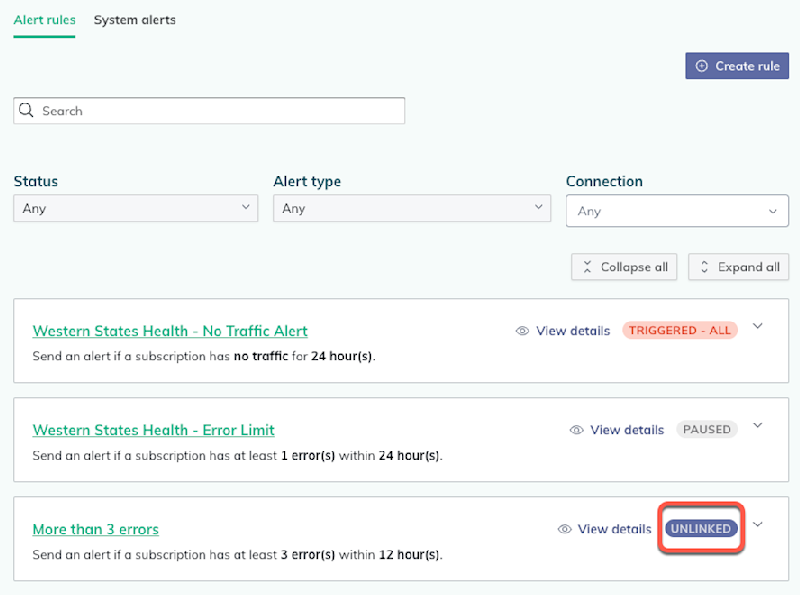

If an alert rule isn’t linked, it’s not actively monitoring anything. You can see whether an alert rule is unlinked on the Alert rules tab of the dashboard.

You may only create one alert rule at a time.

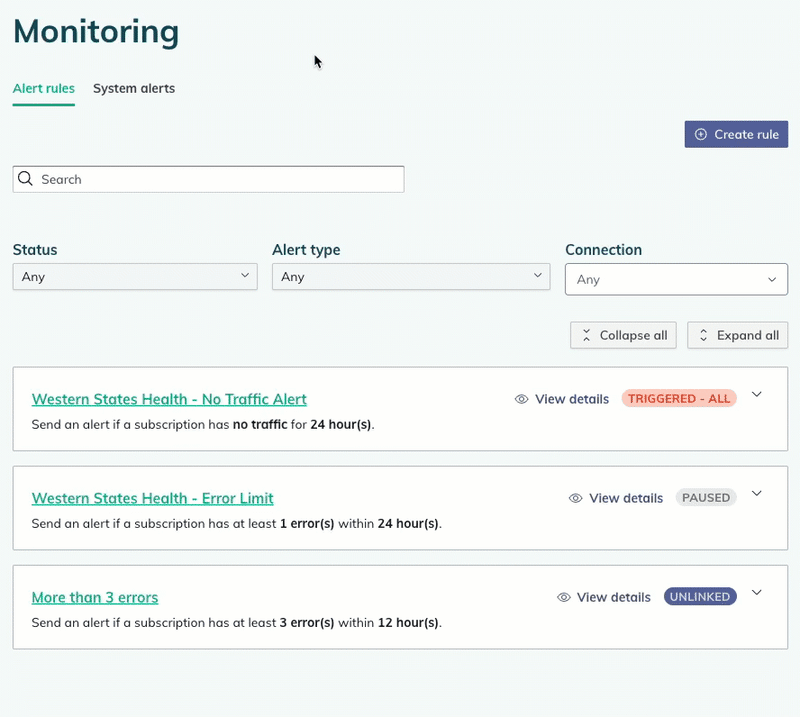

1. Log in to the Redox dashboard.
2. From the navigation menu, click the Monitoring page.
3. By default, the Alert rules tab opens and displays any configured alert rules with their latest status (statuses won’t display for unlinked alerts). You can either:
   1. Expand an alert rule to view its linked subscriptions.
   2. Search for or filter to change which configured alert rules display for the current environment.

      Available environment types and connections

      If you don’t see a list of alert rules or a Create rule button:

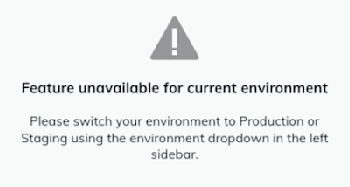

      1. Make sure you’re not in a development environment. Alert rules are only available in staging or production environments.



      2. Check if you have any connections configured for the staging or production environment. Double check you’re in the right environment, or request a new connection for the environment first.



4. To create a new alert rule, click the Create rule button.

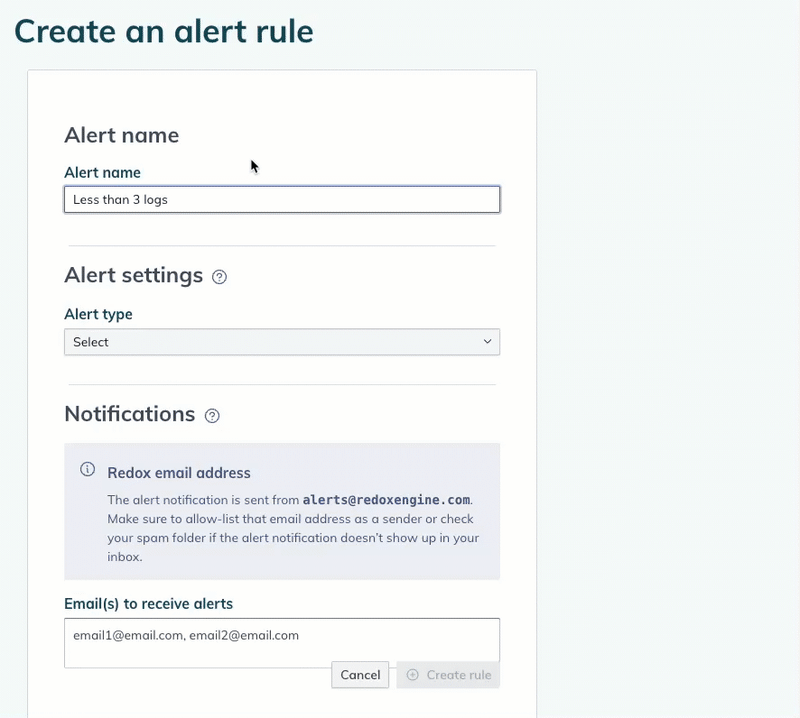

5. The Create an alert rule page opens. In the Alert name field, enter a human-friendly name for the alert. This name displays on the Alert rules tab, so choose a descriptive enough name to easily identify the alert rule.


6. In the Alert type drop-down field, select one of these options:
   • No traffic
   • Low traffic
   • Error threshold
   • Retry threshold

     Multiple alert rules for a subscription

     It’s possible to create multiple alert rules of the same type for a given subscription. For example, you could link two different No traffic alert rules to one subscription. However, you’d then receive multiple notifications for the same type of issue at potentially different times.

7. In the Within drop-down field, select the time interval that Redox should check for the alert rule conditions.

   No traffic or Low traffic - Supported time intervals

   For No traffic or Low traffic alert rules, select any of these time intervals:

   • 30 minutes
   • 1 hour
   • 2 hours
   • 6 hours
   • 12 hours
   • 24 hours
   • 48 hours
   • 72 hours

   Error threshold - Supported time intervals

   For Error threshold alert rules, select any of these time intervals:

   • 15 minutes
   • 30 minutes
   • 1 hour
   • 2 hours
   • 6 hours
   • 12 hours
   • 24 hours

   Retry threshold - Static lookback time

   The time interval for a Retry threshold alert rule is a static lookback time, so you can’t make a selection in this field.

8. For Low traffic, Error threshold, or Retry threshold alert rules, use the up and down arrows to choose the allowable number of logs or errors before an alert rule is triggered.

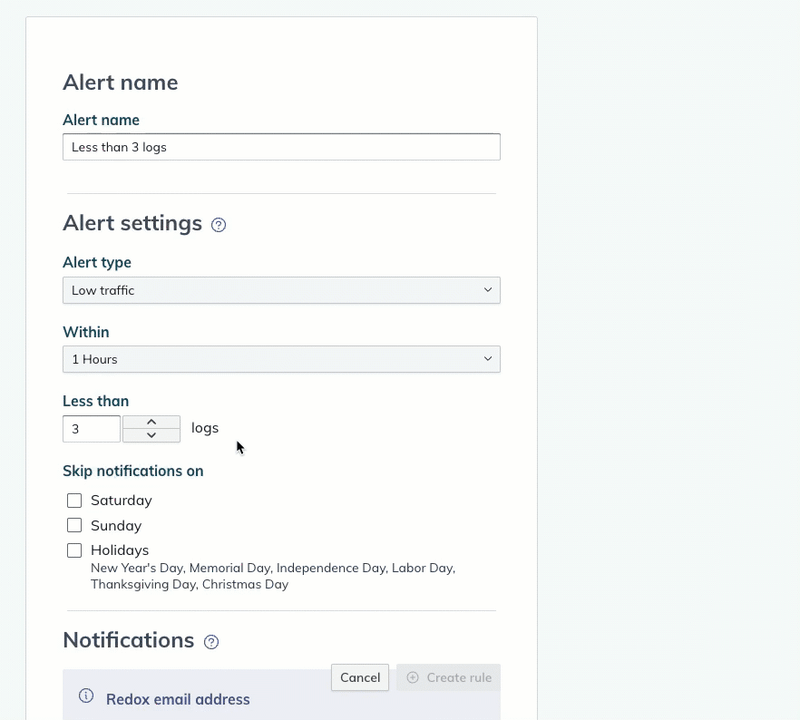

9. (Optional) Select any days (i.e., weekends or holidays) you don’t want to receive notifications for triggered alerts.

   Monitoring doesn’t stop on skipped days

   Monitoring doesn’t ever stop—only notifications stop on skipped days. Any triggered alerts still display in the dashboard no matter what.

   Let’s say you select Saturday and Sunday as your skipped days. If an alert is triggered on Saturday morning, you won’t get a notification about it, but it will appear in the dashboard. Then on Monday, you might get a notification when the triggered alert resolves.

   Also keep in mind that you might not find out about a triggered alert if it’s both triggered and resolved on a skipped day, unless you happen to check the dashboard while it’s active.

   Multi-region holiday lists

   The holiday list changes depending on the region of the currently selected Redox organization. If you have a multi-region organization, you’ll see holiday lists for both the U.S. and Canada.

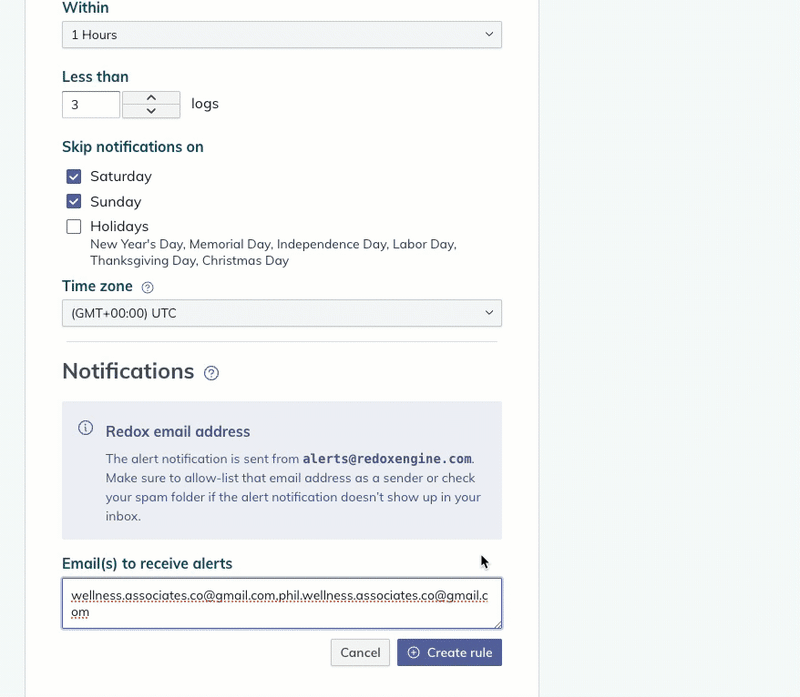

   1. Next, select a time zone for the skipped days.

      Default time zone for different subscriptions

      The default time zone is your connection’s time zone (i.e., in their Redox organization settings). If your connection doesn’t specify a time zone, U.S. Central time serves as the default instead.

      If an alert rule is linked to subscriptions with different time zones, notifications are trigged based on the respective time zone of each subscription.

      For example, you might have an alert rule that’s linked to subscriptions in Central and Pacific time, but you chose to skip notifications on Saturday. If the alert is triggered at 12:30 AM Eastern on a Saturday, you’ll still receive an alert notification for both subscriptions because it’s only it’s 11:30 PM Central or 9:30 PM Pacific on a Friday. However, if another alert rule is triggered for both subscriptions just an hour later, you’d only get a notification for the second subscription.

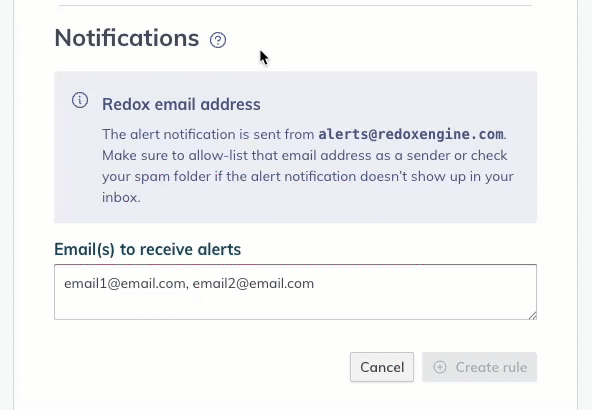

10. In the Notifications section, enter the email address(es) that should receive a notification when the conditions of the alert rule are met. Use commas to separate email addresses if the alert notification should go to more than one address.


11. Click the Create Rule button to save, or click the Cancel button to discard the rule.
12. A modal opens with a reminder to link the alert rule to activate it. Click the Confirm button.
13. The Settings page opens with the new alert rule’s details. To start monitoring rule conditions, link an alert rule to one or more subscriptions.

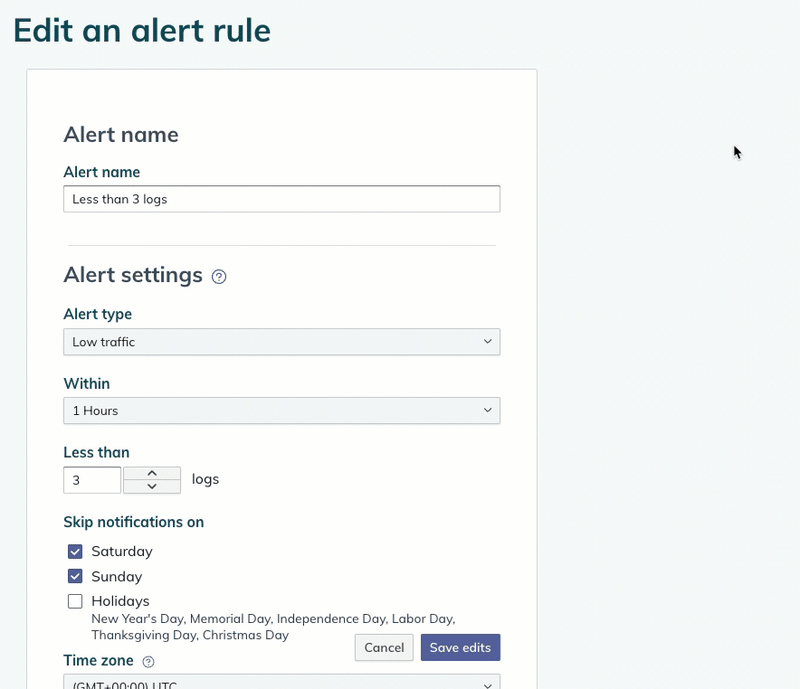

1. Review any alert rules in the environment on the Alert rules tab. Find the one you want to edit. Click the alert rule name or View details button.
2. The Settings page opens with the alert rule’s details and links. Click the Edit button.


3. The Edit an alert rule page opens. Edit the alert name, settings, or notifications.
4. Once you’re finished, click the Save edits button.

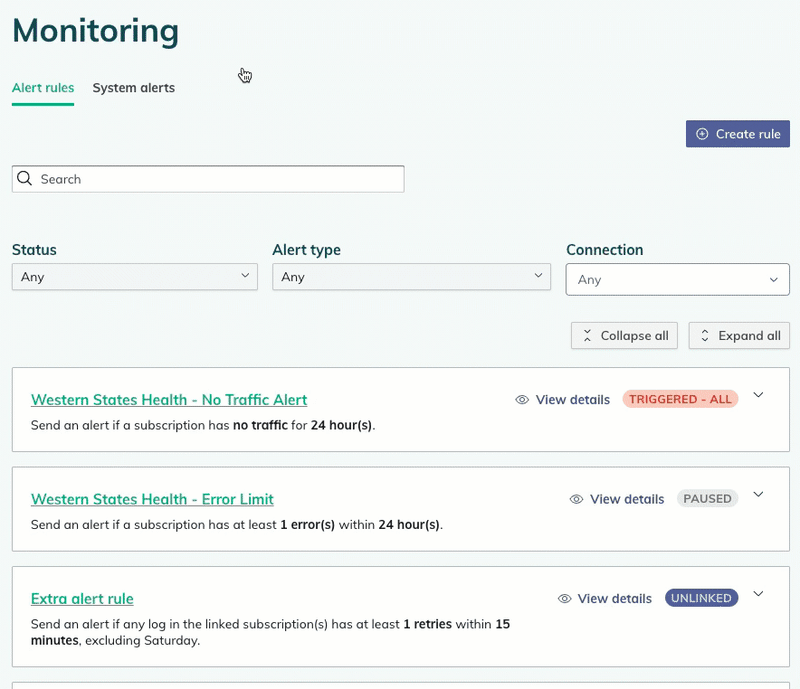

1. Review any alert rules in the environment on the Alert rules tab. Find the one you want to delete. Click the alert rule name or View details button.
2. The Settings page opens. Scroll to the bottom of the page, then click the Delete button. Deleting an alert rule also deletes any associated subscription links.

   Deleting alert rule v deleting links

   This is different from the delete options for each alert rule link, which you can find in the table of links.

3. A confirmation modal appears. Click the Delete button to proceed or the Cancel button to keep the alert rule.



Once you’ve created an alert rule, you must link it to one or more subscriptions to begin monitoring for the rule’s conditions.

1. Review any alert rules in the environment on the Alert rules tab. Find the one you want to link. Click the alert rule name or View details button.

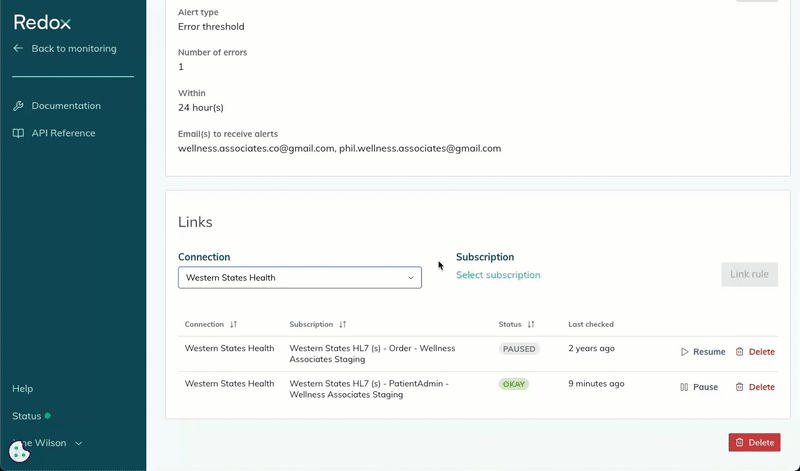

2. The Settings page opens with the alert rule’s details and links. Under the Links section, select the relevant connection from the drop-down menu.


3. Click the Select subscription link.
4. A modal opens with the available subscriptions for the connection you selected. Use the Search field or the Connection drop-down to narrow down the available options. If needed, use the page options at the bottom of the modal to navigate through the pages. Then select the radio button of the subscription you want to link an alert rule to.
5. Click the Select subscription button.
6. Click the Link rule button to finish linking the alert rule to the subscription.


7. The new link appears in the table. Redox begins evaluating for the alert rule conditions every 15 minutes (Error threshold or Retry threshold alert rules) or every 30 minutes (No traffic or Low traffic alert rules).
8. Repeat these steps to link the alert rule to as many other subscriptions as needed.

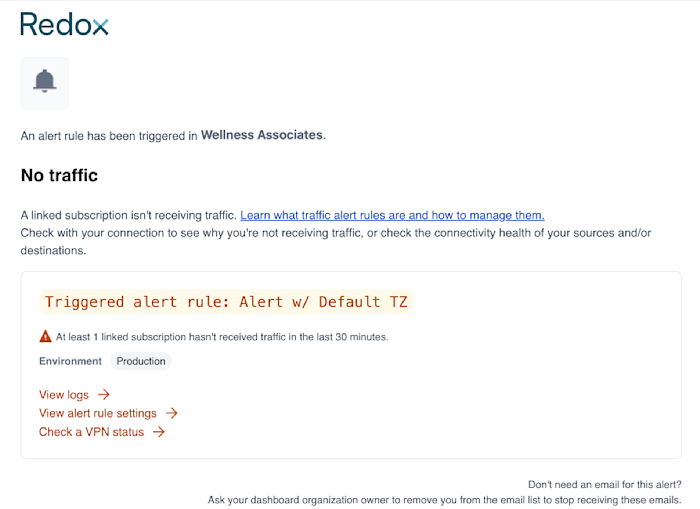

9. When the alert rule conditions are met, we send a notification to the specified list of email addresses. The notification includes the information and related links for the triggered alert rule.

   Redox email address

   The alert notification is sent from alerts@redoxengine.com. Make sure to allow-list that email address as a sender, or check your spam folder if the alert notification doesn't show up in your inbox.

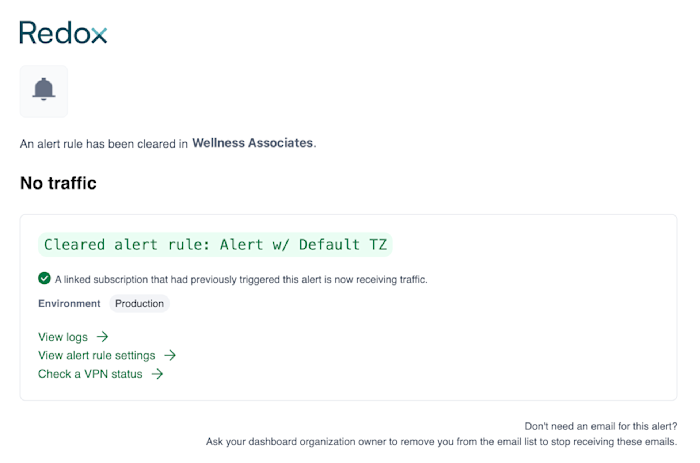

   The specified users also receive a notification when the triggered condition resolves.

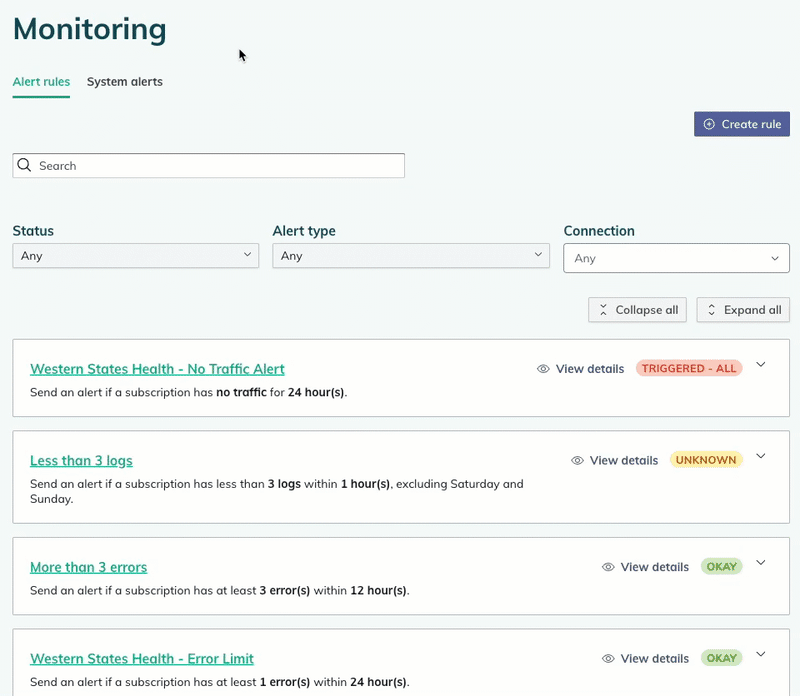

Pausing a link temporarily halts subscription monitoring. The alert rule will still be linked to the subscription, but Redox won’t watch for any of the specified conditions. Pausing only affects monitoring, not actual subscription traffic.

Deleting a link removes the subscription from the alert rule, meaning the subscription won’t be monitored anymore. Deleting the link doesn’t delete the alert rule itself, though.

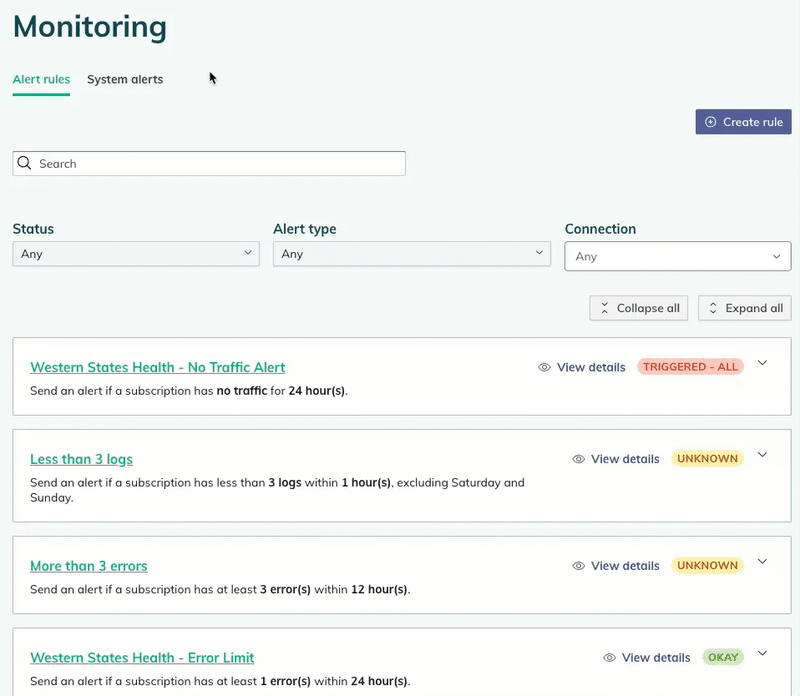

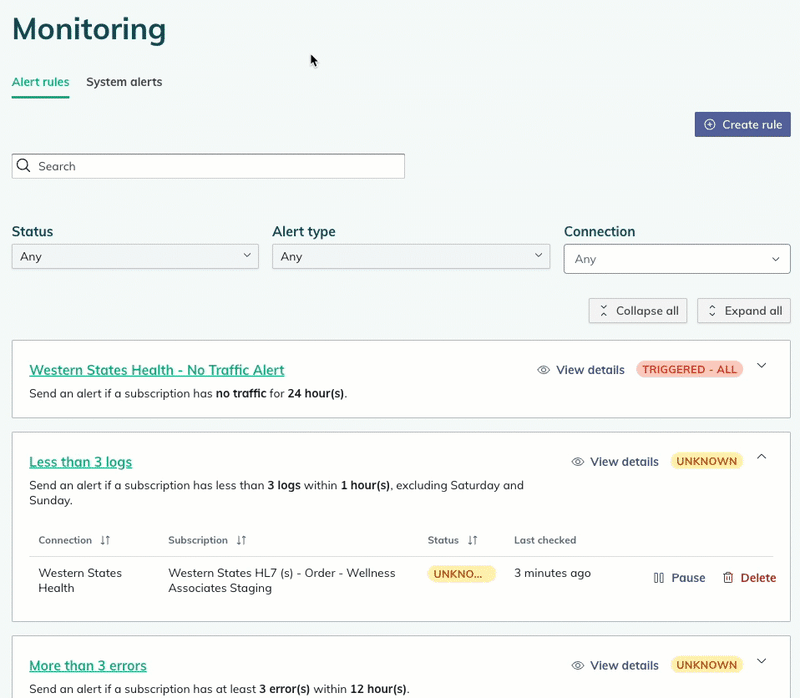

1. Review any alert rules in the environment on the Alert rules tab. Find the one with the link to modify. Click the drop-down arrow to expand the details.
2. Click the Pause or Delete button next to the relevant subscription link.



   If you click Delete, a confirmation modal opens. Click the Delete button to confirm and successfully delete the alert rule link.


3. Alternatively, you can click the alert rule name to open its Settings page. Under the Links section, you can pause or delete subscriptions.

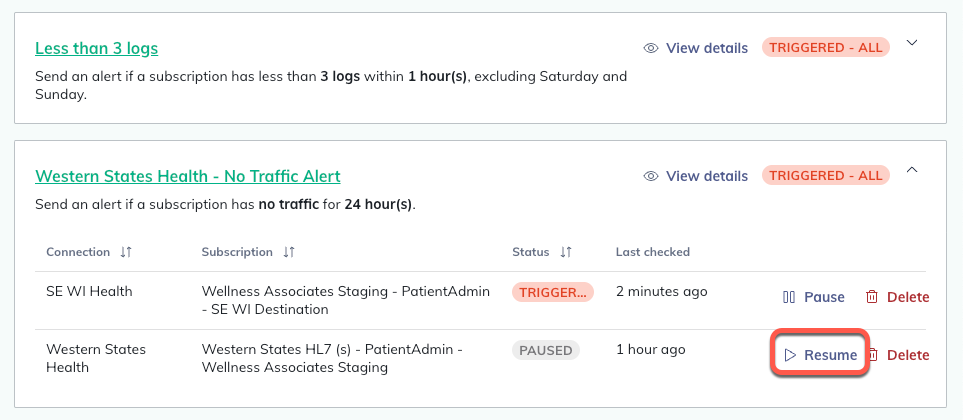

4. To resume monitoring, click the Resume button.



1. Log in to the Redox dashboard.
2. From the navigation menu, click the Monitoring page.

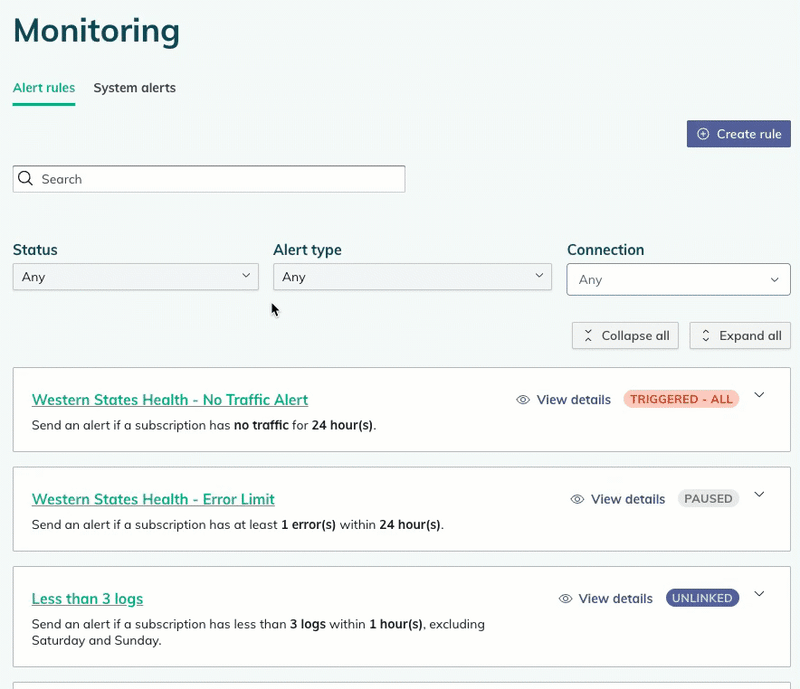

3. By default, the Alert rules tab opens and displays any configured alert rules. An alert rule’s global status appears on the righthand side if it’s linked to one or more subscriptions. Otherwise, the “unlinked” tag displays.

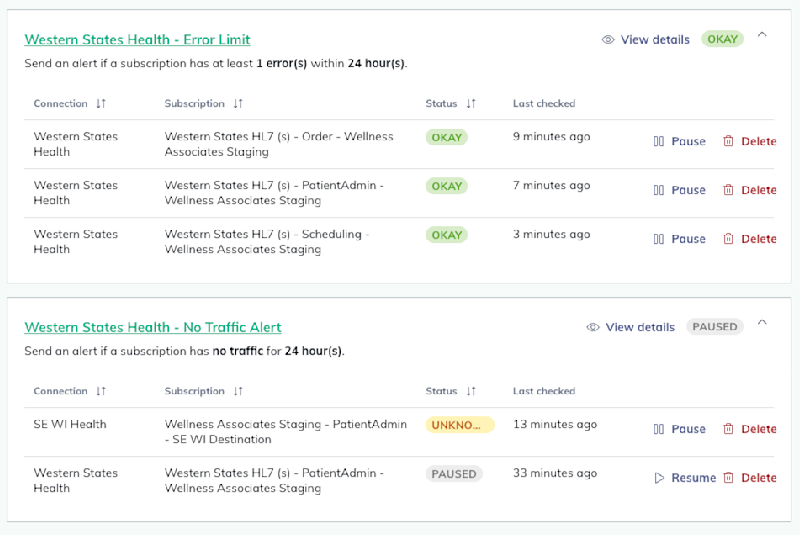

4. Click the drop-down arrow for a quick view of all the alert rule’s links. Each link includes the subscription information and the alert rule’s status for that subscription.



   Alert statuses

   Individual statuses display for each alert rule link:

   • Okay: Traffic in the subscription hasn’t met the conditions defined by the alert rule. This means the alert rule hasn’t ever been triggered or was resolved after being triggered previously.
   • Triggered: Traffic in the subscription has met the conditions defined by the alert rule. An alert notification has been sent to the designated users, unless it was triggered during an ignored day.
   • Unknown: The subscription isn’t being actively monitored. This can happen if the alert rule was recently created and hasn’t run yet.
   • Paused: The subscription isn’t being actively monitored because a user in your Redox organization has paused the alert rule. Only monitoring is paused, not actual traffic flow of the subscription.

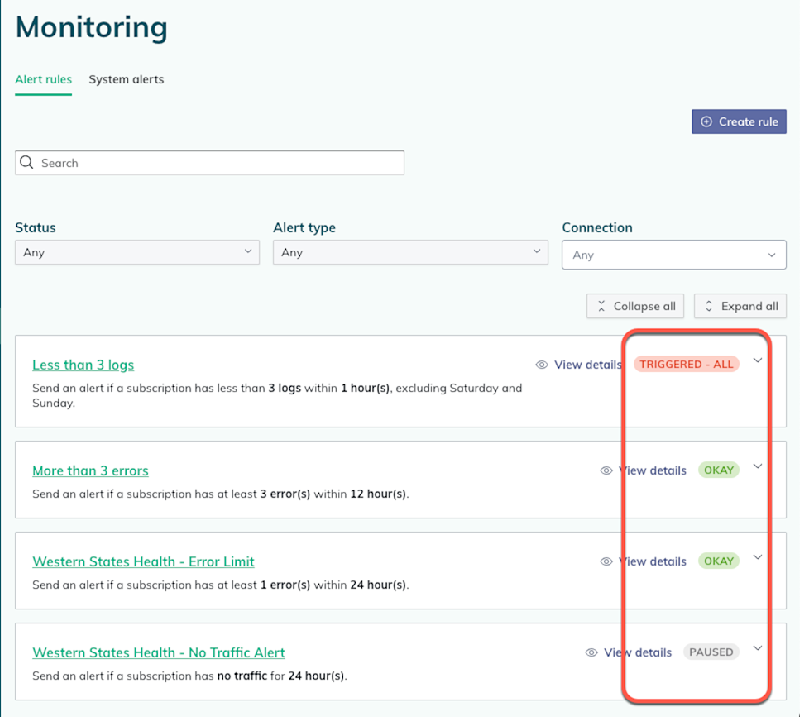

   Individual link statuses are evaluated to create a global status for the alert rule. If all links have the same status, the global status matches.

   • Okay: No links have triggered alerts.
   • Triggered - All: All links have triggered alerts.
   • Triggered - Partial: The links have different statuses, with at least one link being Triggered.
   • Paused: All links have a paused status.
   • Unknown: All links have an unknown status or a combination of Unknown and Paused.

5. To manage alert rule links and edit alert details, click the alert name to open its Settings page.
