Authenticate an OAuth API key

Authenticating your system with an OAuth API key is our recommended auth method. Review our authentication overview.

• A user must be assigned to an engineer role to manage OAuth API keys. Learn about user roles.
• If using your own private/public key pair, generate your own key pair.
• If using your own application for sending the auth request, make sure the axios and jose libraries are installed with npm i axios jose.

First, here’s a high-level overview of the authentication flow:

1. Provide your own or generate a public key with Redox.
2. Send an auth request for an access token from Redox, then store the access token in your system.
3. Initiate any API request with the access token in the header.

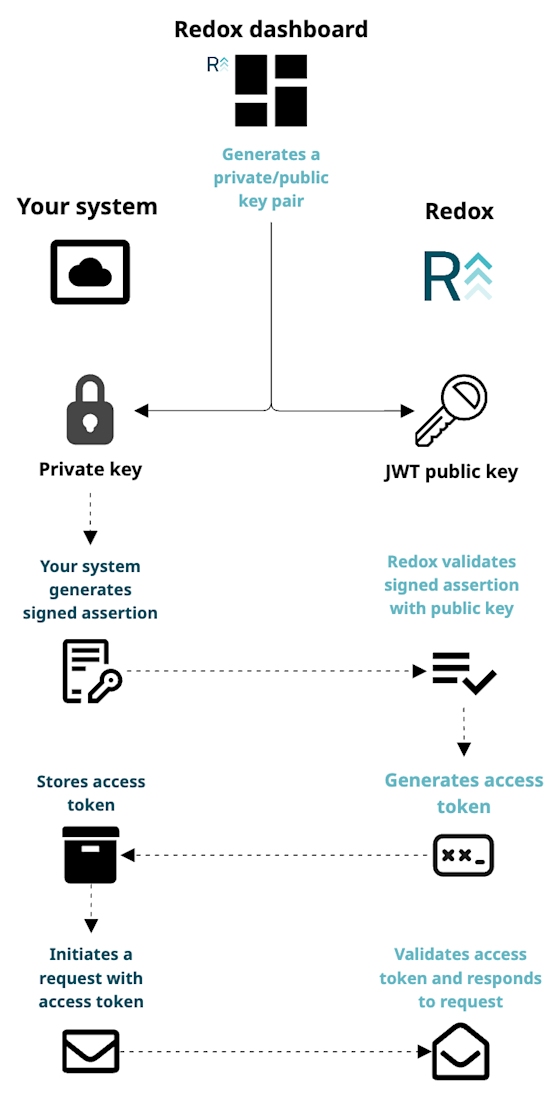

Check out the diagram for a visual version of these steps:

First, you have to have an API key with a private/public key pair. There are two options for this step:

• Option 1: Generate a private/public key pair in the Redox dashboard.
• Option 2: Provide your own public key to Redox and store your own private key.

The navigation steps are the same, but there are separate steps for each method provided below.

1. Log in to the dashboard.
2. From the navigation menu, select the Developer page.
3. By default, the Sources tab opens and displays any configured sources and OAuth API keys. Click the New OAuth API key button. If you want to configure an existing OAuth API key, click the Edit button next to it. Then skip to step 6.
4. A modal opens with the API key details. In the Name field, enter the API key name.

   For multi-region organizations

   The source you use designates which region an API request comes from. As best practice for security, though, we recommend using a unique OAuth API key for sources in each region.

   You can designate the region the API key name (e.g., Production API key — U.S.).

5. Click the Add button.


6. The Settings page opens with the API key details:
   • The Name field contains the API key name you entered previously. Click the Rename button to change it.
   • The Client ID field shows the automatically generated ID for the API key. Copy and store the client ID to use when sending an auth request.
7. Choose one of the following options for your key pair:

   Option 1: Generate keys in the Redox dashboard

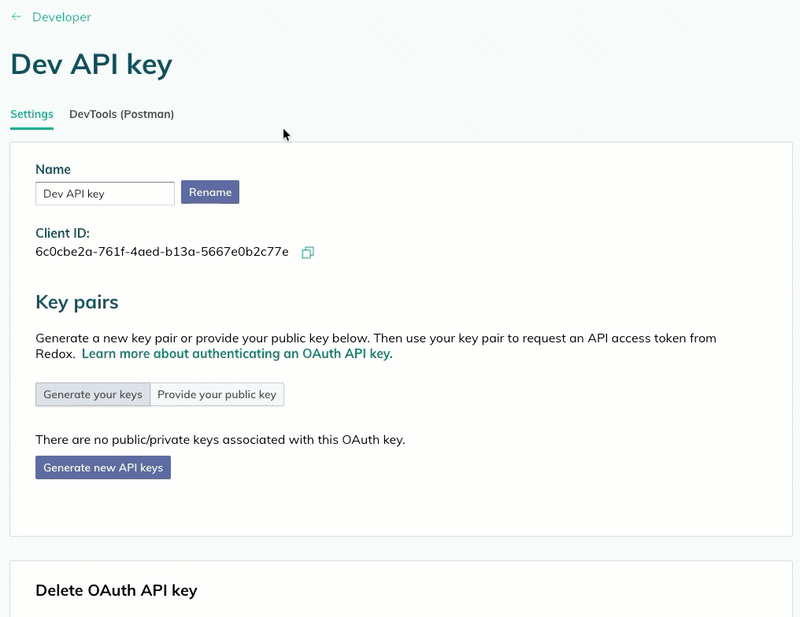

   1. To create a new public/private key pair, click the Generate your keys tab, then click the Generate new API keys button.
   2. The Private Key and Public Key fields populate. Copy and store these values by clicking the Copy button or either of the Download buttons.
      1. For Postman users: If using Postman to send an auth request, you need the related Postman environment. Click the Download Postman button.
   3. Click the Save button. The keys aren’t stored until you save them. Note that the newly generated public key automatically populates the JWKS entry under the Provide your public key tab.
   4. The Settings page closes and the new OAuth API key appears on the Sources tab.



   Option 2: Provide your public key

   1. If you already have a key pair, click the Provide a key pair tab.
   2. Populate your preferred field option. If you provide both, we only use option 1.
      • Option 1: Provide your JWKS URL: Provide the JSON Web Key Set (JWKS) URL. The JWKS URL publicly exposes the public key you use for generating the signed assertion. The URL can be internal to your servers or somewhere like a GitHub Gist. If you use this URL, Redox fetches the kid property in the JWT to find the right public key.
      • Option 2: Provide or edit your JWKS entry: Paste the JWKS entry directly into the dashboard. The JWKS entry is the actual JSON entry for the public key. If you provide the URL, it automatically populates the JWKS entry.
   3. Once the appropriate field is populated, click the Save button. The keys aren't stored until you save them.


   4. The Settings page closes and the new OAuth API key appears on the Sources tab.

Next, send an auth request to receive an access token from Redox. The auth request steps are the same, but there are two options for completing them:

• Option 1: Use an application of your choice.
• Option 2: Use our Postman collection (You must complete the prep steps first).

  Postman prep for auth requests

  For Postman, there’s a little bit of setup to do before sending an authentication request.

  1. From the Settings page of the OAuth API key, click the DevTools (Postman) tab.
  2. The Postman options display. Click the Download Postman collection button.
  3. Run the authentication collection in Postman and select the option for how you want to run it: Postman for Web or Postman for Mac.
  4. Postman opens and automatically imports the Redox Platform Authentication collection. You can use this collection for authenticating requests sent via the Redox FHIR® API or the Redox Data Model API.
  5. If you haven’t already downloaded the Postman environment when you were generating keys, click the Download Postman environment button from the DevTools tab.

     Note about the private key

     If you download the Postman environment from the Settings tab (when you're generating keys), the value of the private key automatically populates. But if you download the Postman environment from the DevTools tab instead, the private key is empty. Make sure to manually enter the private key in the Postman environment if you download it at this step.

  6. In Postman, click the Environments tab.
  7. Click the Import button.
  8. From the file explorer, select the Postman environment that you just downloaded.
  9. The Postman environment is added. Select the environment name in the left-hand pane or in the Environment drop-down.
  10. If the private key variable is still empty, enter the private key that you generated previously.

      JWKS URL

      If you provided your public key with a JWKS URL, you also need to populate the kid value.

  11. Proceed with the auth request steps.

1. Generate a signed request in your system using your private key.
2. Copy the relevant code example for the auth request. Check out the header and parameter definitions below these steps for expected values.
   1. Option 1: With your own application, the auth request should look like one of these:

      Prerequisite: Install axios and joes libraries

      Make sure the axios and jose libraries are installed with npm i axios jose.

      For JavaScript, update the privateKeyPEM, clientId, and kid based on the signed request you generated in step 1.

      Example: Auth request for OAuth (JavaScript)

      javascript

      Copy

      1
      const jose = require('jose');
      2
      const axios = require('axios');
      3
      const randomBytes = require('crypto').randomBytes;
      4
      const qsStringify = require('querystring').stringify;
      5
      const https = require('node:https');
      6

      7
      // import your private key as PEM or JWK
      8
      const privateKeyPEM = ``;  // INSERT PRIVATE PEM KEY HERE
      9

      10
      const clientId = '<INSERT CLIENT ID HERE>';
      11
      const iat = Math.floor(new Date().getTime()/1000);  // Current timestamp in seconds (undefined is valid)
      12
      const aud = 'https://api.redoxengine.com/v2/auth/token';
      13
      const kid = '<INSERT KID HERE>';
      14

      15
      async function getSignedAssertion(clientId, privateKeyPEM, kid, aud, iat) {
      16
          const privateKey = await jose.importPKCS8(privateKeyPEM, 'RS384');
      17

      18
          const payload = {};
      19

      20
          const signedAssertion = await new jose.SignJWT(payload)
      21
          .setProtectedHeader({
      22
              alg: 'RS384',
      23
              kid: kid
      24
          })
      25
          .setAudience(aud)
      26
          .setIssuer(clientId)
      27
          .setSubject(clientId)
      28
          .setIssuedAt(iat)
      29
          .setJti(randomBytes(8).toString('hex')) // a random string to prevent replay attacks
      30
          .sign(privateKey);
      31

      32
          return signedAssertion;
      33
      }
      34

      35
      async function requestJwtAccessTokenAxios(signedAssertion) {
      36
          const requestBody = qsStringify({
      37
            grant_type: 'client_credentials',
      38
            client_assertion_type: 'urn:ietf:params:oauth:client-assertion-type:jwt-bearer',
      39
            client_assertion: signedAssertion
      40
          });
      41

      42
          try {
      43
            const result = await axios.post(
      44
              "https://api.redoxengine.com/v2/auth/token", requestBody, {
      45
                headers: {
      46
                  'content-type': 'application/x-www-form-urlencoded'
      47
                }
      48
              }
      49
            );
      50

      51
            // return response with keys: access_token, token_type, and expires_in
      52
            return result.data;
      53
          }
      54
          catch(e) {
      55
            return e.response.data;
      56
          }
      57
      }
      58

      59
      async function requestJwtAccessTokenNoLibrary(signedAssertion) {
      60

      61
          const requestBody = qsStringify({
      62
              grant_type: 'client_credentials',
      63
              client_assertion_type: 'urn:ietf:params:oauth:client-assertion-type:jwt-bearer',
      64
              client_assertion: signedAssertion
      65
            });
      66

      67
          const options = {
      68
              method: 'POST',
      69
              headers: {
      70
                  'content-type': 'application/x-www-form-urlencoded'
      71
              }
      72
          };
      73

      74
          return new Promise(function(resolve, reject) {
      75
              try {
      76
                  const req = https.request('https://api.redoxengine.com/v2/auth/token', options, (res) => {
      77
                      console.log('statusCode:', res.statusCode);
      78
                      console.log('headers:', res.headers);
      79
                      let data = '';
      80

      81
                      res.on('data', (d) => {
      82
                          data += d;
      83
                      });
      84
                      res.on('end', (d) =>{
      85
                          const parsed = JSON.parse(data);
      86
                          resolve(parsed);
      87
                      });
      88
                      res.on('error', (error) => {
      89
                          throw error;
      90
                      })
      91
                  });
      92

      93
                  req.write(requestBody);
      94
                  req.end();
      95
              }
      96
              catch(e) {
      97
                  reject(e);
      98
              }
      99

      100
          });
      101
      }
      102

      103
      (async() => {
      104
          const signedAssertion = await getSignedAssertion(clientId, privateKeyPEM, kid, aud, iat);
      105
          const accessTokenAxios = await requestJwtAccessTokenAxios(signedAssertion);
      106
          const accessTokenNoLibrary = await requestJwtAccessTokenNoLibrary(signedAssertion);
      107
          console.log({accessTokenAxios});
      108
          console.log({accessTokenNoLibrary});
      109
      })();
      For Python, update the clientId, and kid based on the signed request you generated in step 1, then save your private key in a file named private_key.pem in the same directory as your script.

      Example: Auth request for OAuth (python)

      python

      Copy

      1
      import datetime
      2
      import jwt
      3
      import requests
      4
      from uuid import uuid4
      5

      6
      with open('private_key.pem', 'rb') as f:
      7
        private_key = f.read()
      8

      9
      class BackendServiceAuth(requests.auth.AuthBase):
      10

      11
        def __init__(self, auth_location, client_id, kid, private_key):
      12
          self.auth_location = auth_location
      13
          self.client_id = client_id
      14
          self.kid = kid
      15
          self.private_key = private_key
      16
          self.token = None
      17

      18
        def __call__(self, request):
      19
          if not self.token:
      20
            expiration = datetime.datetime.now() + datetime.timedelta(minutes=5)
      21
            # Add 'kid' property to the header
      22
            headers = {
      23
              'kid': self.kid,
      24
              'alg': 'RS384',
      25
              'typ': 'JWT',
      26
            }
      27

      28
            assertion = jwt.encode(
      29
              {
      30
                'iss': self.client_id,
      31
                'sub': self.client_id,
      32
                'aud': self.auth_location,
      33
                'exp': int(expiration.strftime('%s')),
      34
                'iat': int(datetime.datetime.now().strftime('%s')),
      35
                'jti': uuid4().hex,
      36
              },
      37
              self.private_key,
      38
              algorithm='RS384',
      39
              headers=headers)
      40

      41
            print(f"assertion: {assertion}")
      42

      43
            payload = {
      44
              'grant_type': 'client_credentials',
      45
              'client_assertion_type':
      46
              'urn:ietf:params:oauth:client-assertion-type:jwt-bearer',
      47
              'client_assertion': assertion
      48
            }
      49
            try:
      50
              response = requests.post(self.auth_location, data=payload, timeout=30)
      51
              response.raise_for_status()
      52
              self.token = response.json()['access_token']
      53
              print(f"success! {response.json()}")
      54
            except requests.exceptions.RequestException as e:
      55
              if hasattr(e, 'response') and e.response is not None:
      56
                print(f"Request failed with status code: {e.response.status_code}")
      57
                print(f"Response body: {e.response.text}")
      58
              else:
      59
                print(f"Request failed: {e}")
      60

      61
          request.headers['Authorization'] = 'Bearer %s' % self.token
      62
          return request
      63

      64
      def main():
      65
        client_id = '<your client id>'
      66
        kid = '<the key id (kid) for your private key>'
      67
        auth_location = 'https://api.redoxengine.com/v2/auth/token'
      68
        auth = BackendServiceAuth(auth_location, client_id, kid, private_key)
      69

      70
        # Now you can use 'auth' as the authentication mechanism for your requests.
      71
        response = requests.post(
      72
          'https://api.redoxengine.com/fhir/R4/redox-fhir-sandbox/Development/Patient/_search',
      73
          auth=auth)
      74
        print(response.json())  # Example usage of the token to fetch patient data.
      75

      76
      if __name__ == "__main__":
      77
        main()
   2. Option 2: With Postman, the authentication request should look like this:

      Example: Auth request for OAuth (cURL)

      bash

      Copy

      1
      curl --location --request POST 'https://api.redoxengine.com/v2/auth/token' \
      2
      --header 'Content-Type: application/x-www-form-urlencoded' \
      3
      --data-urlencode 'grant_type=client_credentials' \
      4
      --data-urlencode 'client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer' \
      5
      --data-urlencode 'client_assertion={{signed_assertion}}'
3. Send the populated auth request with the signed assertion to https://api.redoxengine.com/v2/auth/token via HTTP POST from your system.
4. Redox validates the signature in the request using your public key, then sends back a response with the access token.
5. Store the access token in your system.

   Expiration for access token

   Access tokens expire after 5 minutes. If an API requests fails, check that your access token hasn't expired.

   We don't support refresh tokens. Choose a strategy for access tokens based on your expected traffic volume:

   • For low traffic, request an access token each time before making an API request.
   • For high traffic, get as many access tokens as you need, then use different access tokens for multiple API requests.

Review the definitions and expected values for the JWT head and body. Or, view an example of a valid JWT with all of these values populated.

For the JWT header, you should use content-type application/x-www-form-urlencoded and these values:

For the JWT body, use all these required parameters:

For the HTTP request body, use all these required parameters:

Now you’re ready to initiate API requests with the access token in the Authorization HTTP header using the Bearer authentication scheme like this:

1
curl \
2
-X POST https://api.redoxengine.com/endpoint \
3
-H "Content-Type: application/json" \
4
-H "Authorization: Bearer $API_TOKEN" \
5
-d '{}'
